How to Use the Magnum X5 Paint Sprayer Like a Pro

Understanding the Magnum X5 Paint Sprayer

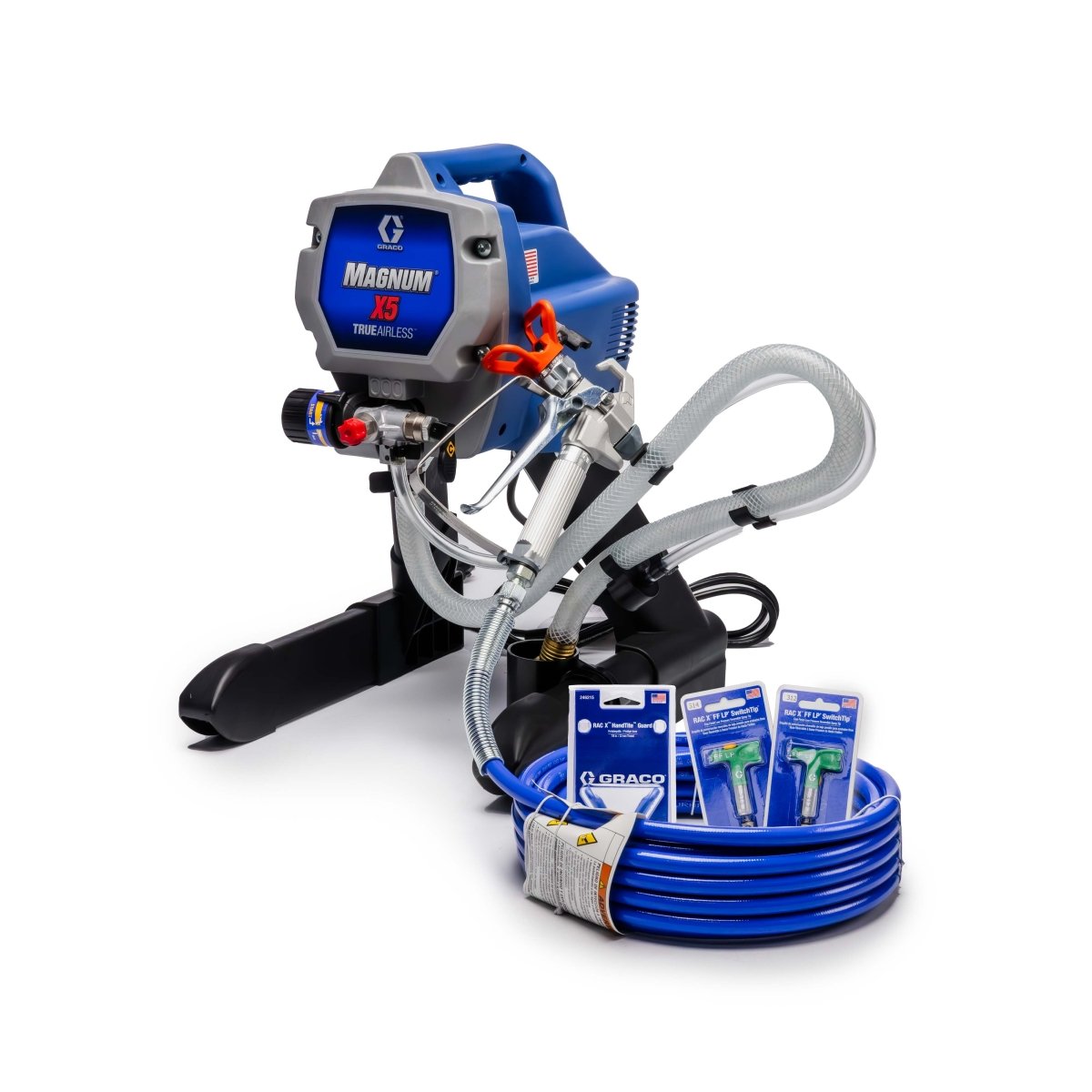

The Magnum X5 paint sprayer is one of the most popular models in Graco’s line of airless spray systems, and for good reason. Designed for homeowners and professionals alike, it delivers a balance of power, precision, and ease of use. Many users choose the Magnum X5 paint sprayer because it allows them to complete painting jobs much faster than using a roller or brush. It works especially well for large surfaces such as walls, fences, decks, and even exterior siding. The sprayer comes equipped with a powerful motor, a sturdy suction tube, and a Graco airless spray gun that ensures smooth, consistent coverage without the streaks or marks that brushes can leave behind.

This model is also known for its portability and user-friendly controls. Whether you’re tackling a DIY home renovation or taking on multiple projects as a contractor, the Magnum X5 offers a level of efficiency that makes painting less of a chore. Before you can maximize its benefits, though, it’s important to understand how the system works, what features it offers, and how to prepare yourself and your workspace for a successful spraying experience.

Preparing Your Workspace for Spraying

Preparation is one of the most important steps in using the Magnum X5 paint sprayer effectively. Even the most advanced sprayer cannot compensate for poor planning. Begin by ensuring that the area you plan to paint is clean, dry, and free of dust or debris. If you’re painting indoors, move furniture to the center of the room or cover it with plastic sheeting. Mask off edges, trim, and areas you don’t want to be sprayed. Blue painter’s tape works well for protecting baseboards, windows, and outlets.

Ventilation is another key factor. Airless sprayers like the Magnum X5 generate a fine mist of paint particles, and while the Graco airless spray gun is designed for efficiency, some overspray is inevitable. Keeping windows open and using fans can help disperse fumes and keep the air fresh. Outdoors, you’ll want to be mindful of wind, as it can carry paint particles farther than expected. Wearing a respirator mask, goggles, and gloves will also protect you from inhaling fumes or coming into contact with paint.

Proper preparation ensures that when you finally fire up the Magnum X5 paint sprayer, your focus can remain entirely on achieving a smooth, professional finish rather than worrying about messes or mistakes.

Setting Up the Magnum X5 Paint Sprayer

Once your space is ready, it’s time to set up the Magnum X5 paint sprayer. One of the main advantages of this system is how straightforward the assembly process is, even for first-time users. Start by connecting the suction tube to your paint bucket. The Magnum X5 is designed to pull paint directly from the container, eliminating the need to pour paint into a smaller cup. This minimizes mess and allows you to work longer without refilling.

Next, connect the hose to the machine and attach the Graco airless spray gun to the other end. Check that all fittings are tight and secure before turning the system on. At this stage, you’ll also want to prime the sprayer. Priming involves running paint through the system to remove air and ensure consistent flow. Set the prime valve to the correct position, and allow paint to circulate until you see a steady stream.

It’s also a good idea to test the sprayer on a piece of cardboard or scrap wood before moving on to your actual project. This practice step will help you confirm that the spray pattern is even and that the paint viscosity works well with the Magnum X5. Adjustments can then be made without risking your project’s finish.

Learning the Basics of the Graco Airless Spray Gun

The Graco airless spray gun that comes with the Magnum X5 is a critical component of the system, and learning to use it properly will determine the quality of your results. This spray gun operates by pushing paint through a small nozzle at high pressure, creating a fine mist that coats surfaces evenly. Unlike traditional sprayers that rely on compressed air, the airless design ensures less overspray and more efficient coverage.

To use the spray gun effectively, maintain a consistent distance from the surface—typically around 12 inches. Moving too close can cause drips and uneven application, while moving too far can result in thin, patchy coverage. Equally important is maintaining a steady pace as you move across the surface. Overlapping each pass by about 50 percent ensures smooth, even coats without visible lines.

The spray gun also comes with a reversible tip that makes cleaning clogs easier. If paint builds up and blocks the nozzle, you can simply rotate the tip, spray through the blockage, and return it to its normal position. This feature keeps your work moving without unnecessary interruptions. Understanding these functions will allow you to harness the full potential of the Graco airless spray gun and the Magnum X5 as a whole.

Practicing Technique for Professional Results

Technique is where the difference between amateur and professional results truly becomes apparent. Even with a high-quality machine like the Magnum X5 paint sprayer, poor technique can lead to uneven coats, streaks, or excessive overspray. The key is consistency. Hold the Graco airless spray gun perpendicular to the surface and move it in straight, controlled strokes. Avoid arcing your arm or tilting the gun, as this can create uneven coverage.

Another helpful tip is to keep the sprayer moving before you pull the trigger and release the trigger just before you stop moving. This prevents heavy paint buildup at the edges of your strokes. Starting and stopping in the middle of the surface can also help minimize noticeable overlaps. For large projects like walls or siding, work in manageable sections, moving systematically from top to bottom. This ensures that the paint blends smoothly and reduces the risk of visible seams.

Finally, remember that multiple thin coats are better than one thick coat. The Magnum X5 allows for quick application, so resist the temptation to oversaturate the surface in a single pass. Two or three light coats will provide stronger adhesion, smoother finish, and longer-lasting results.

Cleaning and Maintenance of the Magnum X5

Proper maintenance is essential to keep your Magnum X5 paint sprayer performing at its best. After each use, thorough cleaning prevents clogs, corrosion, and premature wear. The process may take a bit of time, but it’s far easier than dealing with dried paint inside the system.

Begin by flushing the sprayer with water if you’ve been using water-based paint, or mineral spirits if you’ve used oil-based paint. The system is designed with a cleaning adapter that can connect directly to a garden hose, making the process easier. Run clean water or solvent through the hose and spray gun until it flows clear. Pay special attention to the nozzle and filters, as these are the most common areas for paint buildup.

Once the cleaning is complete, store the Magnum X5 paint sprayer in a dry place. Applying a small amount of pump armor fluid, available from Graco, helps protect the internal components during storage. With regular cleaning and occasional inspection, the Magnum X5 will remain reliable for years, ready to deliver professional-quality results every time you need it.

Advantages of Using the Magnum X5 Over Traditional Tools

Many people wonder why they should invest in a Magnum X5 paint sprayer when brushes and rollers are inexpensive and readily available. The difference becomes clear once you experience the efficiency of airless spraying. The Magnum X5 can cover large surfaces in a fraction of the time it would take with manual tools. What might require several hours with a roller can often be completed in under an hour with the sprayer.

Additionally, the Graco airless spray gun provides a smooth, uniform finish that is difficult to replicate with brushes. This makes it especially useful for projects where appearance matters, such as furniture, cabinets, or exterior siding. The sprayer also excels at reaching tight corners, textured surfaces, and uneven materials like stucco or brick.

While there is a learning curve, the long-term benefits far outweigh the initial investment of time and money. Once mastered, the Magnum X5 becomes a versatile tool that makes painting projects faster, easier, and more enjoyable.

Troubleshooting Common Issues

Even the best paint sprayers can encounter problems from time to time. Understanding how to troubleshoot issues with the Magnum X5 paint sprayer will save you frustration and downtime. One common problem is uneven spray patterns, which often result from a clogged nozzle. Using the reversible tip on the Graco airless spray gun usually resolves this quickly.

Another issue is pressure loss, which may indicate a loose connection, worn seals, or a clogged filter. Regular inspection and cleaning help prevent these problems, but if they occur, tightening fittings or replacing parts is often all that’s required. Priming issues can also arise if air is trapped in the system. Simply re-priming the sprayer usually resolves this.

By learning how to identify and correct minor problems, you can keep the Magnum X5 running smoothly and avoid costly delays during your projects.

Final Thoughts on Mastering the Magnum X5 Paint Sprayer

The Magnum X5 paint sprayer is a powerful tool that transforms the way you approach painting projects. With its efficient design, reliable Graco airless spray gun, and user-friendly setup, it offers professional-quality results even for beginners. The key to success lies in preparation, consistent technique, and regular maintenance.

By following the steps outlined above, you can use the Magnum X5 paint sprayer like a pro—whether you’re repainting a room, refinishing a fence, or giving your home’s exterior a fresh new look. Once you experience the speed and quality it delivers, you’ll understand why so many DIYers and professionals rely on it as their go-to painting solution.
